IT 101 | Benning

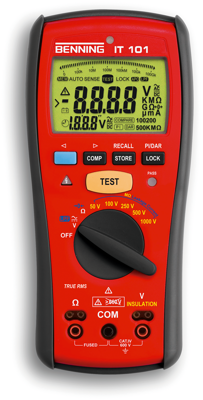

Insulation tester, with carrying bag, CAT IV 600 V, Benning IT 101
Unit Price (€ / pc.)
625.107 € *
Standard delivery time from the manufacturer is: 13 Weeks
Insulation and resistance testers, type Benning IT 101.
For measuring insulation resistance up to 20 Gohm and calculation of the resultant leakage current, resistance measurement up to 40 kohm, low impedance measurement up to 40 ohm, measurement of the polarization index (PI) and degree of absorption (DAR), TRMS voltage measurement up to 600 V AC/DC, selectable ISO measurement limits; Display: 4000 digit (illuminated). Measure value memories: 500. Measurement category: CAT IV 600 V. Dimensions: L 200, W 85, H 40 mm. Weight: 470 g. Supplied with bag, probe, test leads, magnetic suspension, alligator clips, rubber holster and batteries.
Type: 044033, Insulation and resistance tester Benning IT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max measured value DC voltage | 600 V | |
| Surge voltage category | CAT IV 600 V | |
| Version | with carrying bag | |
| Batteries | AA | |
| Max measured value AC voltage | 600 V | |
| Insulation resistance Max | 20 Ω | |
| Insulation resistance Min | 50 Ω | |
| Product type | insulation tester |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
