MM 7-2 | Benning
TRMS digital multimeter MM 7-2, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 0.01 nF to 10 mF, CAT III 1000 V, CAT IV 600 V
Order No.: 21K3429
EAN: 4014651446908
MPN:
MM 7-2
044690
Unit Price (€ / pc.)
287.98 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

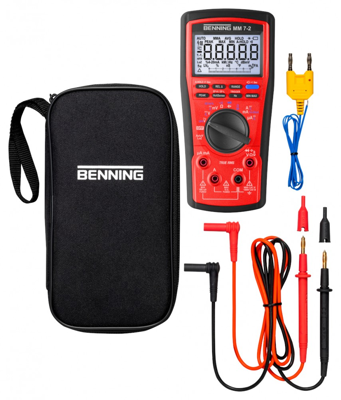

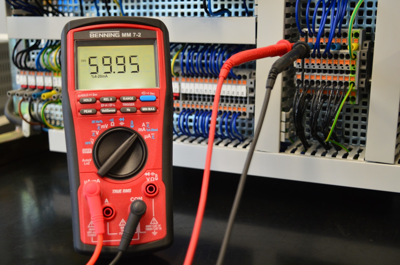

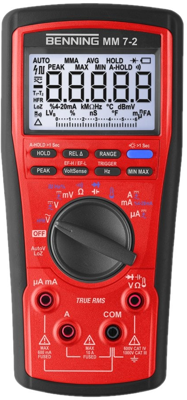

High-End-Multimeter, MM 7-2, Benning
The new TRUE RMS digital multimeter in an ergonomic and rubber-coated 2K housing is suited for the most challenging measuring tasks in electrical trade, industry, service and HVAC technology.
Features
- Backlit digital display with a resolution of 60,000 digits
- TRUE RMS measurement (AC and AC+DC)
- MIN/MAX/average and quick PEAK recording (250 µs)
- Jack control (visual/acoustic) in the µA/mA and A ranges with warning in case of operating errors (fuse protection)
- „AutoV“ function for automatic AC/DC switch-over and measuring range selection
- Low-pass filter (HFR high-frequency suppression, 1000 Hz) for measurements at pulsed motor drives
- Display HOLD and Auto-HOLD when the measured value is stable
- Ergonomic 2-component housing for increased grip and impact resistance
Technical specifications
| Version | digital multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| Capacity range | 0.01 nF to 10 mF | |
| max. resistance range | 60 MΩ | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| Display Digits | 60000 |
Download
Logistics
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
