CM 9 | Benning

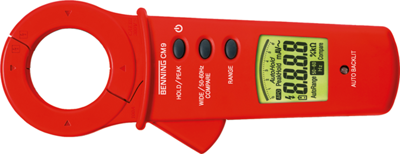

TRMS leakage current clamp CM 9, 100 A (AC), opening 40 mm, CAT III 300 V

Order No.: 22K7692

EAN: 4014650440655

MPN:

CM 9

044065

Image may differ

Key Specification:

Product type leakage current clamp

TRMS possible Yes

Pliers opening 40 mm

Surge voltage category CAT III 300 V

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

TRMS leakage current clamp CM 9-1, 60 A (AC), 600 V (DC), 600 V (AC), opening 23 mm, CAT III 600 V, CAT IV 300 V

Order No.: 22K7694

Manufacturer: Benning

per pc. 474.81 € *

Go to product

*incl. VAT plus shipping costs

Description

Leakage current clamp, 044065, Benning

Fault-related leakage currents are caused by insulation weaknesses or damage. With the BENNING CM 9 all sources of error can be localized quickly and precisely. Preventive measurements can avoid possible damage caused by uncontrolled leakage currents in advance.

Features

The device is built and tested according to DIN VDE 0411 part 1/ EN 61010-1, DIN VDE 0404-4
Measurement of leakage and residual currents in electrical installations (VDE 0100) and devices (VDE 0701-0702, BetrSichV)
Highest resolution of 1 μA in 6 mA measuring range
Reliable and easy detection of insulation faults (e.g. defective cables, loose terminals, contamination, moisture)
Measurement without shutdown during normal operation of the plant/device

Technical specifications

Filter	Property	Value
	Surge voltage category	CAT III 300 V
	max. measured value (frequency)	60 kHz
	max. measured current value (AC)	100 A
	Pliers opening	40 mm
	Product type	leakage current clamp
	TRMS possible	Yes
