CM 9-2 | Benning

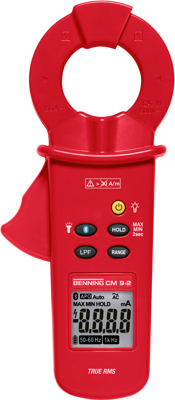

TRMS leakage current clamp CM 9-2, 60 A (AC), opening 40 mm, CAT III 600 V, CAT IV 300 V
Order No.: 22K7693
EAN: 4014651446823
MPN:
CM 9-2
044685
Unit Price (€ / pc.)
756.1498 € *
Standard delivery time from the manufacturer is: 1 Week
Leakage current clamp with Bluetooth and appBenning, CM 9-2, Benning
Error-related leakage currents are caused by weak insulation or insulation damages. The leakage current clamp allows quick and precise localization of all error types. By means of preventive measurements, possible damages due to uncontrolled leakage currents can be avoided in advance.
Features
- reliable and easy detection of insulation faults
- precise due to TRUE RMS measuring method
- ideal for preventive maintenance and fault localization
- includes carrying case and batteries
Technical specifications
| Filter | Property | Value |
|---|---|---|
| TRMS possible | Yes | |
| Pliers opening | 40 mm | |
| max. measured current value (AC) | 60 A | |
| max. measured value (frequency) | 1 kHz | |
| Surge voltage category | CAT III 600 V, CAT IV 300 V | |
| Product type | leakage current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
