CM 9-1 | Benning
TRMS leakage current clamp CM 9-1, 60 A (AC), 600 V (DC), 600 V (AC), opening 23 mm, CAT III 600 V, CAT IV 300 V
Order No.: 22K7694
EAN: 4014651446854
MPN:
CM 9-1
044682
Unit Price (€ / pc.)
474.81 € *
Standard delivery time from the manufacturer is: 1 Week

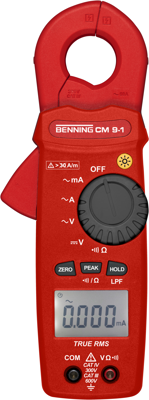

Leakage current clamp with multimeter functions, CM 9-1, Benning
Error-related leakage currents are caused by weak insulation or insulation damages. The leakage current clamp allows quick and precise localization of all error types. By means of preventive measurements, possible damages due to uncontrolled leakage currents can be avoided in advance.
Features
- reliable and easy detection of insulation faults
- precise due to TRUE RMS measuring method
- ideal for preventive maintenance and fault localization
- includes carrying case, measuring leads and batteries
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (DC) | 600 V | |
| max. resistance range | 600 kΩ | |
| max. measured value (frequency) | 1 kHz | |
| Pliers opening | 23 mm | |
| Product type | leakage current clamp | |
| max. measured current value (AC) | 60 A | |
| Surge voltage category | CAT III 600 V, CAT IV 300 V | |
| max. voltage measuring range (AC) | 600 V | |
| TRMS possible | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
