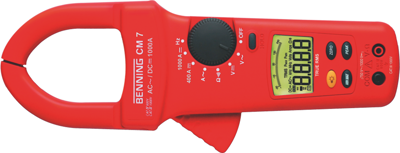

CM 7 | Benning
TRMS AC/DC current clamp CM 7, 1000 A (DC), 1000 A (AC), 1000 V (DC), 750 V (AC), opening 53 mm, CAT IV 600 V
Order No.: 22K7815
EAN: 4014651440593
MPN:
CM 7
044059
Unit Price (€ / pc.)
400.316 € *
Standard delivery time from the manufacturer is: 1 Week
Digital Current Clamp Multimeter, 044059, Benning
Features
- Multifunctional and powerful due to TRUE RMS measuring method for industrial applications.
- Safe current measurements up to 1,000 A AC/DC
- Highest measurement category CAT IV 600 V allows measurements directly at the source of the low-voltage installation
- LC display with backlight
- Compact protective bag and test leads included in delivery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (DC) | 1000 A | |
| max. resistance range | 4 MΩ | |
| min. Measured value (frequency) | 1 Hz | |
| Surge voltage category | CAT IV 600 V | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 750 V | |
| Pliers opening | 53 mm | |
| max. measured current value (AC) | 1000 A | |
| TRMS possible | Yes | |
| Product type | AC/DC current clamp | |
| max. measured value (frequency) | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
