CM 11 | Benning

Name: TRMS AC/DC current clamp CM 11, 10 A (DC), 10 A (AC), 300 V (DC), 300 V (AC), opening 23 mm, CAT IV 300 V
Brand: Benning
SKU: 22K7818
Availability: InStock

TRMS AC/DC current clamp CM 11, 10 A (DC), 10 A (AC), 300 V (DC), 300 V (AC), opening 23 mm, CAT IV 300 V

Order No.: 22K7818

EAN: 4014651440678

MPN:

CM 11

044067

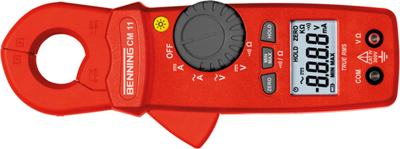

Image may differ

Key Specification:

Product type AC/DC current clamp

TRMS possible Yes

Pliers opening 23 mm

Surge voltage category CAT IV 300 V

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

476.5236 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

476.52 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Milliamp current clamp multimeter, 044067, Benning

In many cases, and especially in industrial environments, the use of modern true RMS measuring instruments is necessary. The TRUE RMS measuring method correctly displays the actual, effective value of an alternating current - regardless of whether the waveform of the current is sinusoidal or distorted.

Features

Ideal for troubleshooting in electrical systems, controls, devices and automotive electrics
Precise measurement of small AC / DC currents with highest resolution of 0.1 mA
Precise due to true rms measurement method TRUE RMS
Compact dimensions with 23 mm clamp opening
Measurement of 4 mA - 20 mA process signals without interruption of the current loop

Technical specifications

Filter	Property	Value
	Surge voltage category	CAT IV 300 V
	max. measured current value (DC)	10 A
	max. measured current value (AC)	10 A
	max. resistance range	500 kΩ
	max. voltage measuring range (AC)	300 V
	max. voltage measuring range (DC)	300 V
	Pliers opening	23 mm
	TRMS possible	Yes
	Product type	AC/DC current clamp
