2100-ALPHA | BEHA-AMPROBE

BEHA-AMPROBE voltage/continuity tester, 2100-ALPHA, 4312495

Order No.: 22K8255
EAN: 4099891459192
MPN:
2100-ALPHA
4312495
Series: 2100
2100-ALPHA BEHA-AMPROBE Voltage Testers
Image may differ
Unit Price (€ / pc.)
87.2389 € *
Available: 18 pcs.
Leadtime: 1 Week **
Total Price:
87.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
87.2389 €

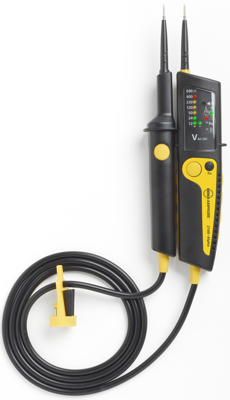

Voltage and continuity tester, 2100-ALPHA, BEHA-AMPROBE

Beha-Amprobe 2100-Alpha, 2100-Beta and 2100-Gamma are robust and reliable voltage and continuity testers with rotating field direction indication. The safety corresponds to the measurement categories CAT IV / 600 V and CAT III / 1000 V. All 2100 Series models comply with the DIN VDE 0682-401:2011/EN 61243-3:2010 standard for voltage detectors and are GS-approved. The housing is made of reinforced plastic and is specified to protection class IP 64 to ensure reliable operation.

Functions

  • Voltage test
  • Optical and acoustic continuity and voltage test
  • Patented rotating field direction indicator, no 3rd hand" required
  • Single-pole phase test
  • Polarity display

Device information

  • Switchable load (load tester) of 240 W by means of two push buttons, triggering of an RCD/FI up to 30 mA
  • IP 64, splash-proof and dustproof
  • Captive measuring tip protection to reduce the risk of injury
  • Fully functional voltage display even without or with empty batteries

Equipment highlights

  • No inadvertent tripping of RCD/FI circuit breakers
  • Quick one-hand test on mains sockets with 19 mm contact spacing, without removing the test probe from the device
  • Measuring point illumination via white LED
  • Very robust design with double insulated cables
Technical specifications
Version Spannungs-/Durchgangsprüfer
max. voltage measuring range (DC) 690 V
max. voltage measuring range (AC) 690 V
Continuity test 0-500 kΩ
Rated category CAT III, CAT IV
Display LED
Degree of protection (IP) IP64
Logistics
Country of origin CN
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
