2100-ALPHA BUNDLE | BEHA-AMPROBE

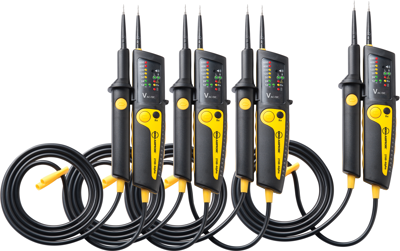

BEHA-AMPROBE voltage tester bundle, 2100-ALPHA BUNDLE, 4980695

Order No.: 27K0777
EAN: 4099891459291
MPN:
2100-ALPHA BUNDLE
4980695
Series: 2100
2100-ALPHA BUNDLE BEHA-AMPROBE Voltage Testers
Image may differ
Unit Price (€ / pc.)
289.17 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
289.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
289.17 €

Voltage Tester, 4980695, BEHA-AMPROBE

The BEHA-Amprobe Voltage Detector 2100-Alpha is a robust and easy to use two-pole voltage detector for voltage and continuity testing. The 2100-Alpha is designed for industrial and commercial applications in the range 12 - 690 V AC/DC with safety ratings CAT IV 600 V, CAT III 690 V, developed according to voltage tester specifications and GS tested.

Visual (LED bargraph row) and audible indication - Voltage test - Single-pole phase test - Visual and audible continuity test - Double-pole rotating field direction indicator, no "3rd hand" required - Switchable load (load tester) of 240 W by means of two push buttons, triggering of an RCD/FI up to 30 mA - Automatic detection of DC/AC voltage, polarity detection - IP 64, splash-proof and dustproof - Captive measuring tip protection to reduce the risk of injury.

Technical specifications
Version Spannungsprüfer-Bundle
max. voltage measuring range (DC) 690 V
max. voltage measuring range (AC) 690 V
Continuity test 0-500 kΩ
Rated category CAT III, CAT IV
Display LED
Degree of protection (IP) IP64
Logistics
Country of origin CN
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
