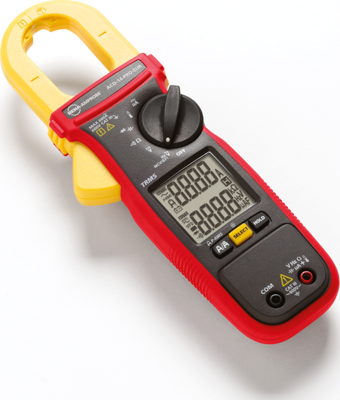

ACD-14-PRO | BEHA-AMPROBE
TRMS AC current clamp ACD-14-PRO, 600 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V
NCNR (non cancelable / non returnable)
AC current clamp, 4718989, BEHA-AMPROBE
The modern ACD-14-PRO EUR current clamp meter offers a wide range of measuring functions for HVAC and electrical applications. It is equipped with a large LCD dual display withbacklight and can display voltage and current simultaneously. ACD-14-PRO-EUR offers the following functions: True RMS measurements, low pass filter, inrush current, frequency, resistance, capacitance, temperature, DC micro amps, amp tip and non-contact voltage detection. The Amp-Tip function provides reliable and accurate current measurement down to 0.1 A on both large and small conductor diameters. The low-pass filter allows accurate current and voltage measurements to be made on motor controls with frequency converters. The meter has a rubber-covered housing, is particularly robust and offers high safety in accordance with overvoltage category CAT III 600 V.
Features
- Dual display with illumination
- Accurate measurement of small AC currents (Amp- Tip)
- Measurement of ionization current (μA- DC range) in heating systems
- True RMS measurement (TRMS)
| Filter | Property | Value |
|---|---|---|
| Product type | AC current clamp | |
| TRMS possible | Yes | |
| Pliers opening | 30 mm | |
| Surge voltage category | CAT III 600 V | |
| max. measured current value (AC) | 600 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| max. resistance range | 6000 kΩ | |
| min. Measured value (frequency) | 5 Hz | |
| max. measured value (frequency) | 999.9 Hz |
| Property | Value |
|---|---|
| Country of origin | TW |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
