HALOFLEX 2X1,50 RT | bda connectivity

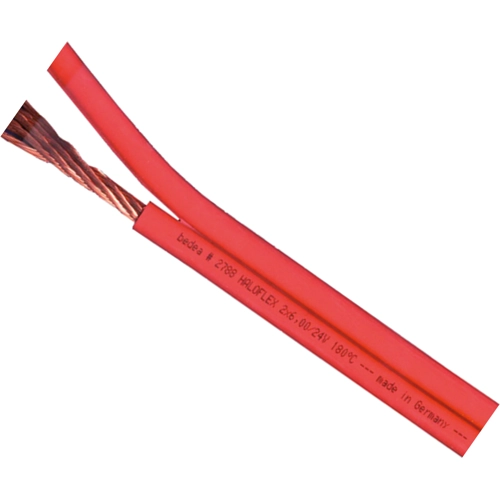

TPE-S connection cable HALOFLEX 2 x 1.5 mm², unshielded, red, HALOFLEX 2X1,50 RT
Unit Price (€ / mtr.)
1.6303 € *
Standard delivery time from the manufacturer is: 2 Weeks
Flat low-voltage halogen control cables, type Haloflex.
Resistant to high temperatures, fine-wire twin conductor, ideal for connection to low-voltage halogen lamps; Color: red, operating voltage: 24 VAC. Test voltage: 1.5 kVDC, inner conductor: bright stranded copper wire. Operating temperatures: –50 to +150 °C, briefly up to +180 °C.
Technical attributes (type, conductor cross-section, dimensions): 2785, 2 x 1.5 mm², 5.7 x 2.7 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Number of cores | 2 | |
| Temperature range (unmoved) | max. 150 °C | |
| Material | TPE-S | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | EG |
| Customs tariff number | 85444993 |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
