11010941 | bda connectivity

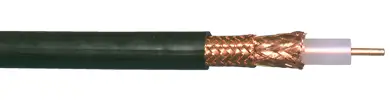

Coax RF cable, 50 Ω (50R), black, Bright copper wire, 11010941
Unit Price (€ / mtr.)
13.2566 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.26 € *
Price list
Quantity
Price per unit*
1 mtr.
13.2566 €
10 mtr.
11.6739 €
50 mtr.
10.2340 €
100 mtr.
9.8413 €
500 mtr.
9.4367 €
*incl. VAT plus shipping costs
Subject to prior sale
Coax RF cables, 50 ohm to MiL-C-17, type RG 217/U.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Material | PVC | |
| Colour | black | |
| Outer diameter | 13.8 mm | |
| Cable material | copper | |
| Cable structure | 1 x 2.7 mm | |
| Shielding | shielded | |
| Dielectric material | PE | |
| Dielectric diameter | 9.4 mm | |
| Capicity/m | 101 pF/m | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85442000 |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
