10980941 | bda connectivity

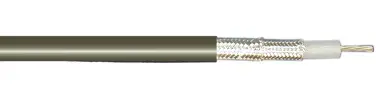

Coax RF cable, 50 Ω (50R), black, Silver-plated stranded copper wire
Unit Price (€ / mtr.)
9.3534 € *
Available: 152 mtr.
Total Price:
9.35 € *
Price list
Quantity
Price per unit*
1 mtr.
9.3534 €
10 mtr.
8.2229 €
100 mtr.
7.2233 €
200 mtr.
6.9377 €
*incl. VAT plus shipping costs
Subject to prior sale
Coax RF cables, 50 ohm to MiL-C-17, type RG 214/U.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Material | PVC | |
| Colour | black | |
| Outer diameter | 10.8 mm | |
| Cable material | copper, silver-plated | |
| Cable structure | 7 x 0.75 mm | |
| Shielding | shielded | |
| Dielectric material | PE | |
| Dielectric diameter | 7.24 mm | |
| Capicity/m | 101 pF/m | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
