10970941 | bda connectivity

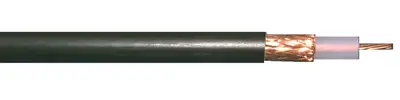

Coax RF cable, 50 Ω (50R), black, Bright stranded copper wire
Unit Price (€ / mtr.)
4.1055 € *
Available: 145 mtr.
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
1 mtr.
4.1055 €
10 mtr.
3.7366 €
50 mtr.
3.2844 €
100 mtr.
3.1297 €
500 mtr.
2.9393 €
*incl. VAT plus shipping costs
Subject to prior sale
Coax RF cables, 50 ohm to MiL-C-17, type RG 213/U.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Material | PVC | |
| Colour | black | |
| Outer diameter | 10.3 mm | |
| Cable material | copper | |
| Cable structure | 7 x 0.75 mm | |
| Shielding | shielded | |
| Dielectric material | PE | |
| Dielectric diameter | 7.24 mm | |
| Capicity/m | 101 pF/m | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
