58802411. | Barthelme
Signal light, 24 V (AC), 24 V (DC), red, Mounting Ø 16 mm, LED number: 1, 58802411.
Discontinued
Unit Price (€ / pc.)
19.3613 € *
Available: 48 pcs.
Total Price:
19.36 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3613 €
10 pcs.
17.0408 €
50 pcs.
15.8746 €
150 pcs.
15.1844 €
500 pcs.
14.4109 €
*incl. VAT plus shipping costs
Subject to prior sale

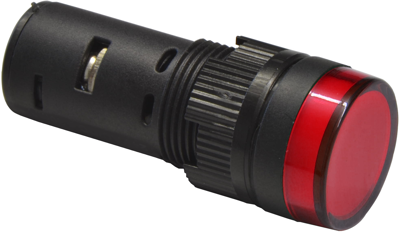

LED signal beacon, 58802411, Barthelme
LED signal lamp with permanently integrated LEDs. Due to the use of LED technology, the signal lamp is robust and shockproof and has low power consumption and a long service life.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Diode Diameter | 19 mm | |
| Rated voltage (DC) | 24 V | |
| Installation diameter | 16 mm | |
| Connection | screw connection | |
| Rated current | 20 mA | |
| Number of LEDs | 1 | |
| Farbe der Beleuchtung | red | |
| Assembly | screw mounting | |
| Rated voltage (AC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
