58801211 | Barthelme
Signal light, 12 V (AC), 12 V (DC), red, Mounting Ø 16 mm, LED number: 1, 58801211
Unit Price (€ / pc.)
10.9599 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
219.20 € *
Price list
Quantity
Price per unit*
20 pcs.
10.9599 €
40 pcs.
10.4839 €
60 pcs.
9.9365 €
*incl. VAT plus shipping costs
Subject to prior sale

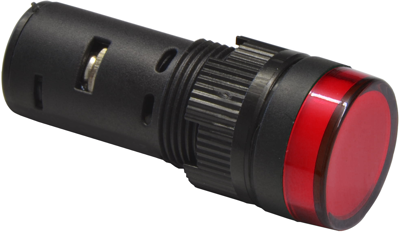

LED signal lamp, 58801211, Barthelme
shockproof, low power consumption, uniform brightness, long life, low heat generation, touch-proof screw terminal, gasket, protection class: front IP65, rear IP20, mounting diameter: 16 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Farbe der Beleuchtung | red | |
| Number of LEDs | 1 | |
| Rated voltage (AC) | 12 V | |
| Rated voltage (DC) | 12 V | |
| Assembly | screw mounting | |
| Diode Diameter | 19 mm | |
| Rated current | 20 mA | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
