00430328 | Barthelme
LED assortment box, THT, Ø 5 mm, red/green/blue/white/yellow, 120 to 2000 mcd, 35°, 00430328
Order No.: 31G6001
EAN: 4021553086064
MPN:
00430328
LED Sortiment 100 Stk. 5mm rot,blau,grün,gelb,weiß
Discontinued
Unit Price (€ / pc.)
53.4191 € *
Available: 33 pcs.
Total Price:
53.42 € *
Price list
Quantity
Price per unit*
1 pcs.
53.4191 €
5 pcs.
50.2180 €
15 pcs.
48.2902 €
50 pcs.
46.1482 €
200 pcs.
43.5897 €
*incl. VAT plus shipping costs
Subject to prior sale
LED assortment, 00430328, Barthelme

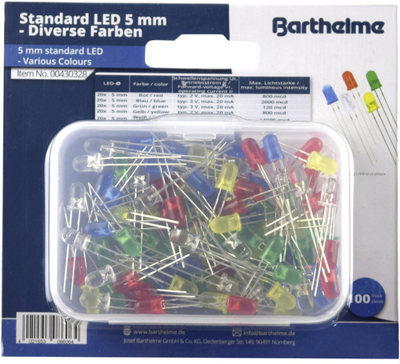

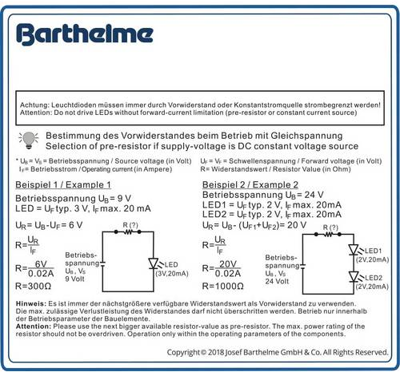

This basic assortment with different colored 5 mm wired standard LEDs is optimally suited for the immediate start in applications with semiconductor light. The most important technical data can be read off the back of the blister pack.
LED-Chips müssen immer durch Vorwiderstände oder Konstantstromquellen strombegrenzt werden.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Radiation angle | 35 ° | |
| Lens | clear | |
| Forward Current | 30 mA | |
| max. operating temperature | 80 °C | |
| Light intensity typ. | 2 cd | |
| Assembly | THT | |
| min. operating temperature | -25 °C | |
| Light intensity min. | 0.12 cd | |
| On-State Voltage | 5 V | |
| Colour of the LED | red/green/blue/white/yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
