56547-163-2F66 | Badger Meter Europa

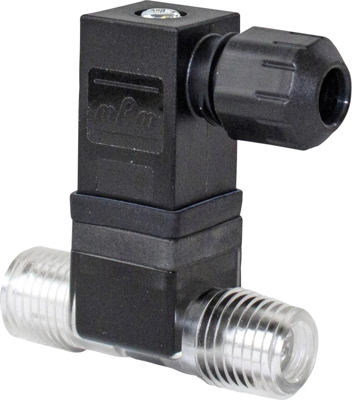

Turbine meter, 25 bar, Ø 5 mm, PA 6.3 T, 56547-163-2F66
Unit Price (€ / pc.)
65.8427 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
65.84 € *
Price list
Quantity
Price per unit*
1 pcs.
65.8427 €
5 pcs.
60.4401 €
10 pcs.
57.4294 €
25 pcs.
52.8955 €
50 pcs.
49.8610 €
*incl. VAT plus shipping costs
Subject to prior sale
Turbine meter, 56547-163-2F66, Badger Meter Europa
The small turbine meter VISION measurement technology is ideal for the accurate measurement of low viscous and nonaggressive fluids. This product is most suited for the measurement of flow rates from 0.1 to 2.5 l/min. The turbine meter can be mounted in any position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure | 25 bar | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 24 V | |
| Connection | stranded wires | |
| diameter | 5 mm | |
| measurement range | 0.1-2.5 l/min | |
| Shell Material | PA 6.3 T | |
| Product type | turbine meter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 90261081 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
