56510-163-2F66 | Badger Meter Europa
Turbine meter, 25 bar, Ø 6 mm, PA 6.3 T, 56510-163-2F66
Unit Price (€ / pc.)
59.0478 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
59.05 € *
Price list
Quantity
Price per unit*
1 pcs.
59.0478 €
3 pcs.
56.2394 €
5 pcs.
53.4310 €
10 pcs.
49.2065 €
*incl. VAT plus shipping costs
Subject to prior sale

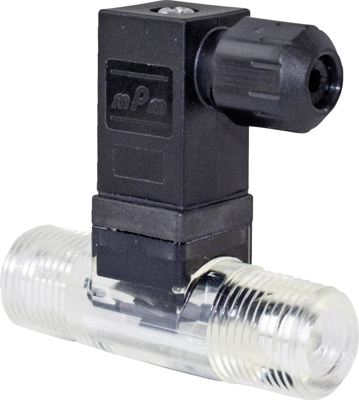

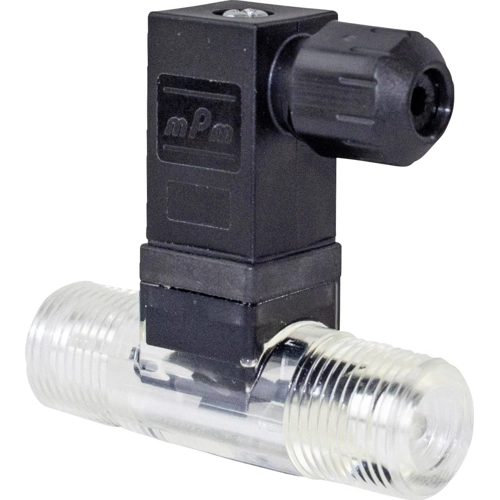

Turbine meter, 56510-163-2F66, Badger Meter Europa
The small turbine meter VISION measurement technology is ideal for the accurate measurement of low viscous and nonaggressive fluids. This product is most suited for the measurement of flow rates from 0.5 to 35 l/min. The turbine meter can be mounted in any position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | turbine meter | |
| measurement range | 0.5-5 l/min | |
| Shell Material | PA 6.3 T | |
| Pressure | 25 bar | |
| Switching Voltage (DC) | 24 V | |
| diameter | 6 mm | |
| Degree of protection (IP) | IP67 | |
| Connection | stranded wires |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 90261081 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
