56500-163-4F22 | Badger Meter Europa
Turbine meter, 25 bar, Ø 8 mm, PA 6.3 T, 56500-163-4F22
Unit Price (€ / pc.)
52.3124 € *
Available: 20 pcs.
Next delivery: 15 pcs. on 2025-10-02
Total Price:
52.31 € *
Price list
Quantity
Price per unit*
1 pcs.
52.3124 €
5 pcs.
49.3969 €
10 pcs.
46.4933 €
25 pcs.
43.5897 €
50 pcs.
40.6861 €
*incl. VAT plus shipping costs
Subject to prior sale

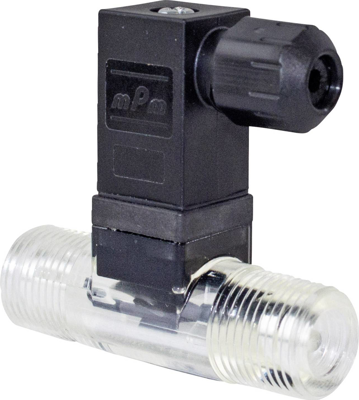

Turbine meter, 56500-163-4F22, Badger Meter Europa
The small turbine meter VISION measurement technology is ideal for the accurate measurement of low viscous and nonaggressive fluids. This product is most suited for the measurement of flow rates from 0.5 to 35 l/min. The turbine meter can be mounted in any position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | stranded wires | |
| Product type | turbine meter | |
| Degree of protection (IP) | IP67 | |
| Shell Material | PA 6.3 T | |
| diameter | 8 mm | |
| measurement range | 1-25 l/min | |
| Pressure | 25 bar | |
| Switching Voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261081 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
