T16ED01 | BACO
Mushroom pushbutton, unlit, latching, waistband round, red, mounting Ø 40 mm, T16ED01
Unit Price (€ / pc.)
18.9805 € *
Standard delivery time from the manufacturer is: 4 Weeks
Mushroom head pushbutton, black, for control and signal gear, 30 mm, type BACO
Type: T16ED01
With mounting nut and chromed front bezel, rotary release, for combination with adapter and contact elements, latching 30 mm actuator; Degree of protection: IP 65. Certification: UL. Operating temperatures: - 25 to +70 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|

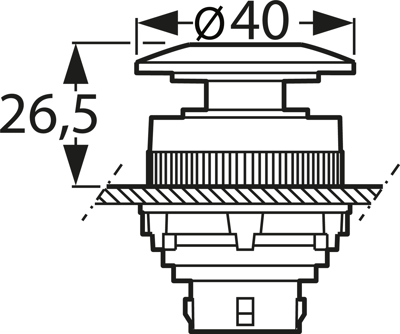

| Installation diameter | 40 mm | |
| Protection class | IP65 | |
| can be illuminated | No | |
| Installation height | 26.5 mm | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Actuator colour | red | |
| Type of mounting | threaded ring | |
| Product type | mushroom pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
