L61QB21 | BACO

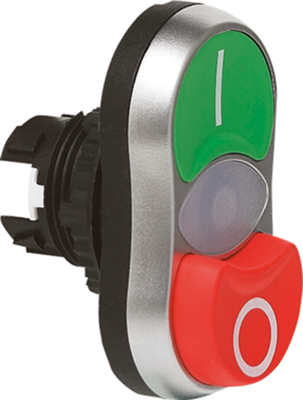

Double pushbutton, unlit, groping, waistband oval, green/red, mounting Ø 22 mm, L61QB21

Order No.: 12G5402
EAN: 4099889246889
MPN:
L61QB21
Series: L61Q
L61QB21 BACO Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
14.3633 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
143.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
14.3633 €

Twin pushbutton, for control and signal gear, 22 mm, series BACO

Type: L61QB21

Version: with high and flat pushbutton

Color: green - red

Legend: I - O

Operating temperatures: - 25 bis +70 °C

Degree of protection: IP 66

Certification: UL

With mounting nut and chromed front bezel, for combination with adapter and contact elements, 22 mm actuator with momentary action.

Technical specifications
Installation height 11 mm
Contact function groping
Installation diameter 22 mm
Type of mounting threaded ring
Actuator colour green/red
Product type double pushbutton
Protection class IP66
Collar shape of the front frame oval
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
