L23AH10 | BACO

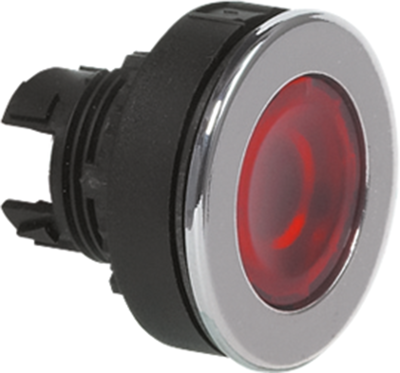

Pushbutton, illuminable, groping, waistband round, red, mounting Ø 22 mm, L23AH10
Unit Price (€ / pc.)
13.328 € *
Standard delivery time from the manufacturer is: 3 Weeks
Control and signal gear, 22 mm, type BACO.
The contact elements, actuating elements, and accessories can be combined to suit your requirements; Certification: UL. Operating temperatures: - 25 to +70 °C.
Super-flat pushbuttons, illuminated, type BACO L23AH.
With mounting nut and chromed front bezel, for combination with adapter and contact elements, 22 mm actuator with momentary action; Degree of protection: IP 66.
Type: L23AH10, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Protection class | IP66 | |
| can be illuminated | Yes | |
| Installation height | 2.8 mm | |
| Contact function | groping | |
| Collar shape of the front frame | round | |
| Actuator colour | red | |
| Type of mounting | threaded ring | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
