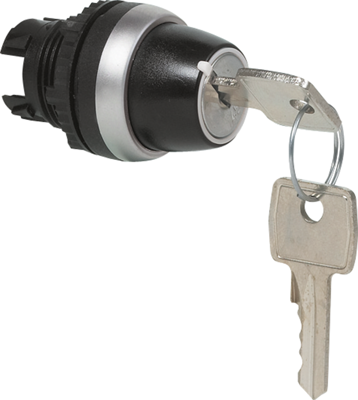

L21LA00 | BACO

Rotary switch, unlit, latching, waistband round, black, 45°, mounting Ø 22 mm, L21LA00

Order No.: 12G5425
EAN: 4099889247015
MPN:
L21LA00
L21LA00 BACO Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
27.5009 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
137.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
27.5009 €

Key operated selector switch, for control and signal gear, 22 and 30 mm, series BACO

Type: L21LA00

Version: latching

Switching angle: 45°

Switching function: on - off

Operating temperatures: - 25 to +70 °C

Degree of protection: IP 66

Certification: UL

With mounting nut, chromed front bezel and two keys, for combination with adapter and contact elements. Key removal position: off.

Technical specifications
Installation height 26.2 mm
Contact function latching
Installation diameter 22 mm
Type of mounting threaded ring
Actuator colour black
Product type rotary switch
Protection class IP69K
Rotation angle 45°
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
