L21AD01 | BACO

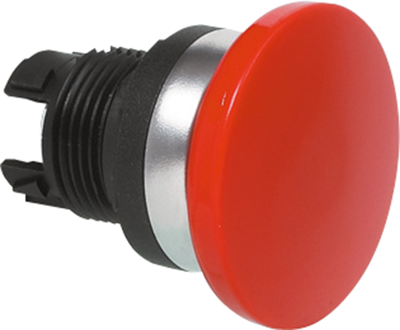

Mushroom pushbutton, unlit, groping, waistband round, red, mounting Ø 40 mm, L21AD01
Unit Price (€ / pc.)
10.9123 € *
Standard delivery time from the manufacturer is: 2 Weeks
Mushroom head pushbutton, red, for control and signal gear, 22 and 30 mm, series BACO
Type: L21AD01
With mounting nut and chromed front bezel, for combination with adapter and contact elements, 22 mm actuator with momentary action; Degree of protection: IP 66. Certification: UL. Operating temperatures: - 25 to +70 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP69K | |
| Contact function | groping | |
| Installation height | 22 mm | |
| Installation diameter | 40 mm | |
| Type of mounting | threaded ring | |
| Collar shape of the front frame | round | |
| Actuator colour | red | |
| can be illuminated | No | |
| Product type | mushroom pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
