1-1393763-9 | AXICOM
Reed relay, 5 V (DC), 2 Form A (N/O), DIP, 10 W, with diode, 1-1393763-9
Unit Price (€ / pc.)
13.9587 € *
Available in 5 Days: 238 pcs. - if ordered today
Total Price:
348.97 € *
Price list
Quantity
Price per unit*
25 pcs.
13.9587 €
50 pcs.
13.7207 €
*incl. VAT plus shipping costs
Subject to prior sale

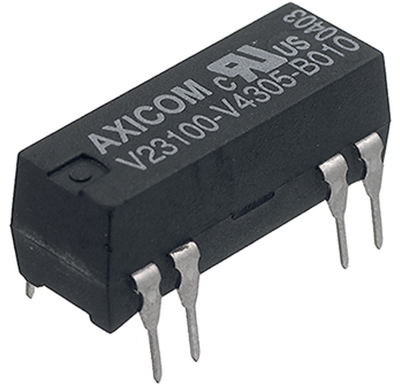

Reed relays, type TE Connectivity/AXICOM V23100-V4.

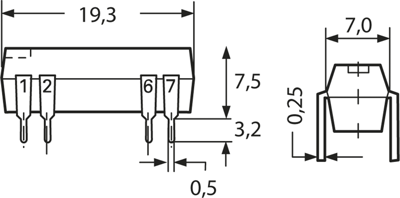

For DC voltage, monostable, hermetically sealed in DiL package. For PCB mounting. With suppressor diode; Grid: 2.54 mm. Contact type: 2 x NO. Switching voltage: max. 200 V AC/DC. Switching current: max. 0.5 A. Continuous current: max. 1.0 A. Contact rating: max. 10 W/10 VA. Contact resistance: max. 150 mohm. Dielectric strength contact/coil: 1500 VDC. Capacitance (contacts/coil): max. 2.0 pF. Response/release time: max. 0.75/0.15 ms. Operating temperatures: –40 to +85 °C.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): 1-1393763-9, 5.0 VDC, 200 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form A (N/O) | |
| Design | DIP | |
| switching current | 500 mA | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 200 Ω | |
| Switching Voltage (DC) | 200 V | |
| Switching Voltage (AC) | 200 V | |
| Breaking capacity | 10 W | |
| Connection | PCB connection | |
| Grid | 2.54 mm | |
| Contact material | ruthenium | |
| Version | with diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
