5-1393789-0 | AXICOM
Relay, 2 Form C (NO/NC), 6 V (DC), 257 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, 5-1393789-0
Unit Price (€ / pc.)
1.8445 € *
Available in 5 Days: 116,500 pcs. - if ordered today
Total Price:
922.25 € *
Price list
Quantity
Price per unit*
500 pcs.
1.8445 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

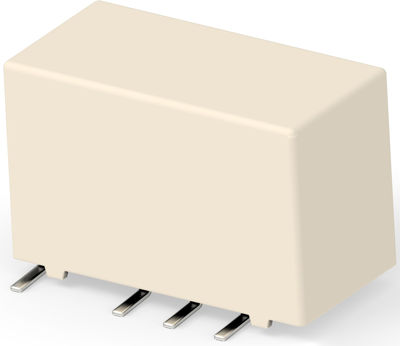

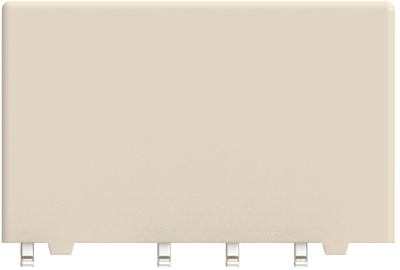

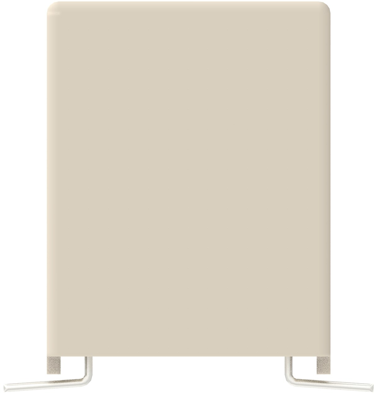

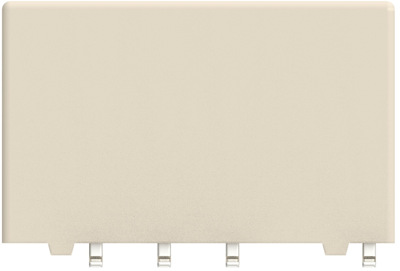

Signal relay, 5-1393789-0, AXICOM
Signal relay, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 682 mW Coil Power (DC), Screw Mount/Socket.
Features
- Immersion cleanable
- High sensitivity for low power consumption
Applications
- Communications equipment linecard application
- Voice over IP
- Office and business equipment
- Measurement and control equipment
- Automotive equipment as CAN bus
- Keyless entry
- Speaker switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 6 V | |
| Switching Voltage (DC) | 220 V | |
| Connection | gull-wing | |
| Contact material | AgNi + Au | |
| switching current | 2 A | |
| Coil resistance | 257 Ω | |
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
