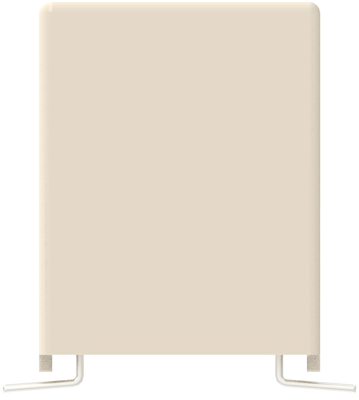

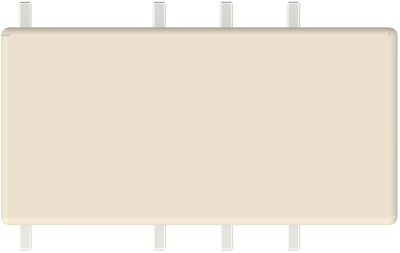

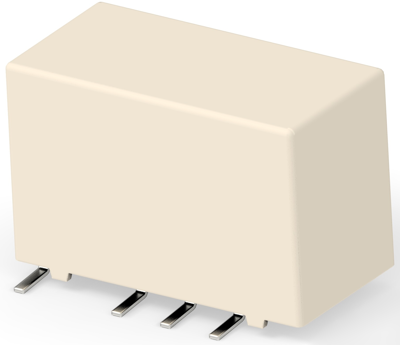

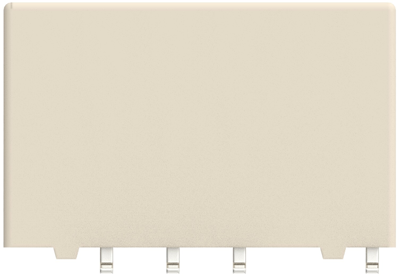

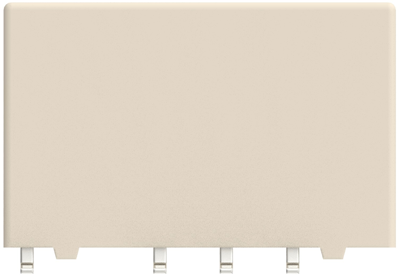

5-1393788-7 | AXICOM
Relay, 2 Form C (NO/NC), 12 V (DC), 1029 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, 5-1393788-7
Order No.: 71P9348
EAN: 4099891595227
MPN:
5-1393788-7
Unit Price (€ / pc.)
1.7850 € *
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
714.00 € *
Price list
Quantity
Price per unit*
400 pcs.
1.7850 €
800 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
Signal relay, 5-1393788-7, AXICOM
Signal relay, 220 VDC Contact voltage, 250 VAC Contact voltage, 140 mW Coil Power (DC), Printed circuit board, PCB-SMT, 12 VDC Coil voltage, 2 A.
Applications
- Voice over IP
- Office equipment
- Measurement and control equipment
- Keyless entry
- Speaker switch
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 12 V | |
| Switching Voltage (DC) | 220 V | |
| Connection | gull-wing | |
| Contact material | AgNi + Au | |
| switching current | 2 A | |
| Coil resistance | 1029 Ω | |
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
