5-1393763-0 | AXICOM
Relay, 2 Form C (NO/NC), 15 V (DC), 2000 Ω, 0.5 A, 200 V (DC), 200 V (AC), monostable, 5-1393763-0
Unit Price (€ / pc.)
11.9952 € *
Available in 5 Days: 4,861 pcs. - if ordered today
Total Price:
239.90 € *
Price list
Quantity
Price per unit*
20 pcs.
11.9952 €
25 pcs.
11.1027 €
*incl. VAT plus shipping costs
Subject to prior sale

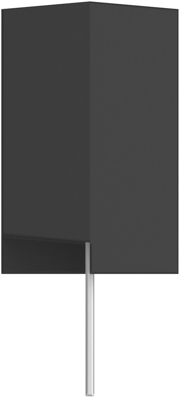

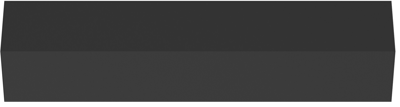

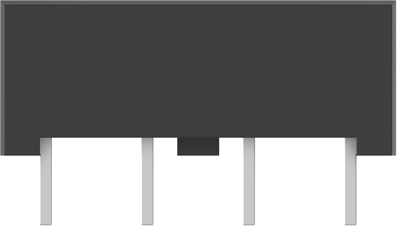

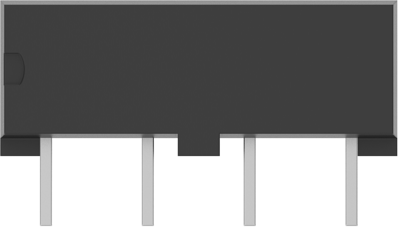

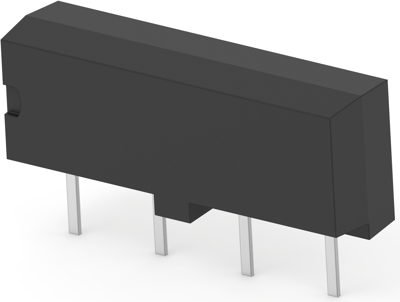

Signal relay, 5-1393763-0, AXICOM
Features
- Highly reliable switching
- High switching rates
- Ultrasonic cleanable
- High vibration and shock resistance
Applications
- Incircuit tester
- Measuring and control systems
- Telecom equipment
- Alarm and security equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 15 V | |
| Switching Voltage (DC) | 200 V | |
| Connection | PCB pin | |
| Contact material | NiTi | |
| switching current | 0.5 A | |
| Coil resistance | 2000 Ω | |
| Switching Voltage (AC) | 200 V | |
| Coil type | monostable | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
