4-1393817-1 | AXICOM
Relay, 1 Form C (NO/NC), 24 V (DC), 400 Ω, 2 A, 150 V (DC), 125 V (AC), bistable, 4-1393817-1

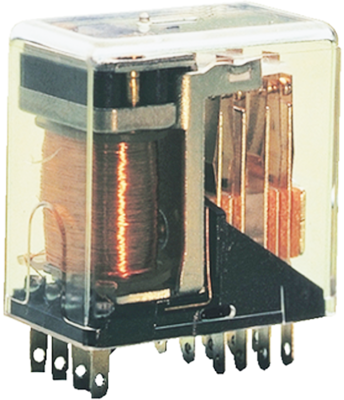

Cradle relay, type TE Connectivity/AXICOM P.

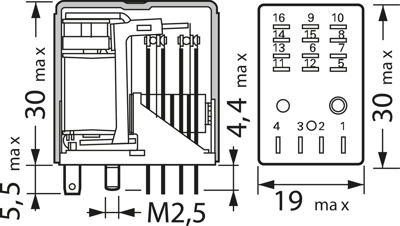

Size: 2, for DC voltage, polarized, bistable with 2 coils, plug-in and fixed installation, dust-proof (IP 30). Contact material: silver, gold-plated. Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 50 K/W. Response/release time: typically 4.0/4.0 ms. Switching rate: max. 20 switching cycles/s. Socket descriptions below the Cradle relay.
With twin contacts and 4 x CO.
Test voltage contact/contact: 500 VRMS. Switching voltage: max. 150 VDC/125 VAC. Switching current: max. 2.0 A. Breaking capacity: voltage-dependent 35 to 70 W/50 VA.
Technical attributes (type, rated coil voltage, voltage range (min./max.), coil resistance (±15%)): 4-1393817-1, 24 VDC, 16.5/26.5 VDC, 400/340 ohm
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Switching Voltage (DC) | 150 V | |
| Connection | PCB connection | |
| Contact material | PdNi | |
| switching current | 2 A | |
| Coil resistance | 400 Ω | |
| Switching Voltage (AC) | 125 V | |
| Coil type | bistable | |
| Contact type | 1 Form C (NO/NC) |
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
