4-1393788-8 | AXICOM
Relay, 2 Form C (NO/NC), 5 V (AC), 2057 Ω, 2 A, 220 V (DC), 250 V (AC), bistable, 4-1393788-8
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Available in 5 Days: 1,462 pcs.
Leadtime: 33 Weeks **
Total Price:
235.62 € *
Price list
Quantity
Price per unit*
100 pcs.
2.3562 €
250 pcs.
2.3205 €
*incl. VAT plus shipping costs
**Subject to prior sale

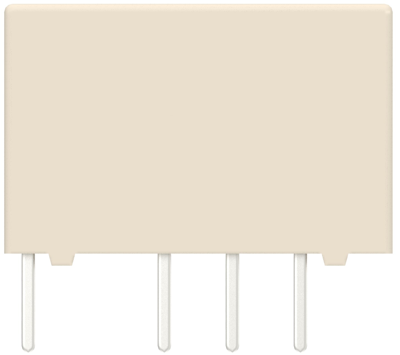

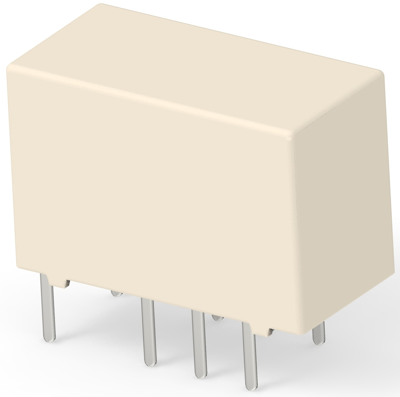

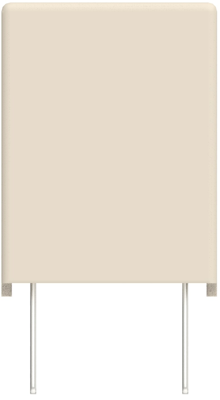

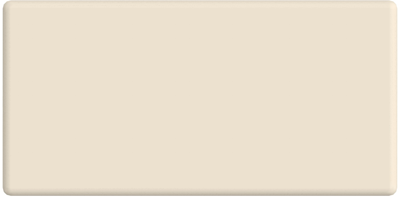

Signal relay, 4-1393788-8, AXICOM
Signal relay, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 807 mW Coil Power (DC), Printed circuit board, PCB-THT.
Features
- Immersion cleanable
- High sensitivity for low power consumption
Applications
- Communications equipment linecard application
- Voice over IP
- Office and business equipment
- Measurement and control equipment
- Automotive equipment as CAN bus
- Keyless entry
- Speaker switch
Technical specifications
| Switching Voltage (AC) | 250 V | |
| Coil type | bistable | |
| Coil voltage (AC) | 5 V | |
| switching current | 2 A | |
| Switching Voltage (DC) | 220 V | |
| Connection | PCB pin | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | AgNi + Au | |
| Coil resistance | 2057 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
