3-1462037-0 | AXICOM
Relay, 2 Form C (NO/NC), 24 V (DC), 2.88 kΩ, 2 A, 220 V (DC), 250 V (AC), monostable, 3-1462037-0
Unit Price (€ / pc.)
3.6414 € *
Available: 1,367 pcs.
Available in 5 Days: 3,250 pcs. - if ordered today
Total Price:
3.64 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6414 €
10 pcs.
3.3796 €
25 pcs.
3.1535 €
50 pcs.
2.8679 €
*incl. VAT plus shipping costs
Subject to prior sale

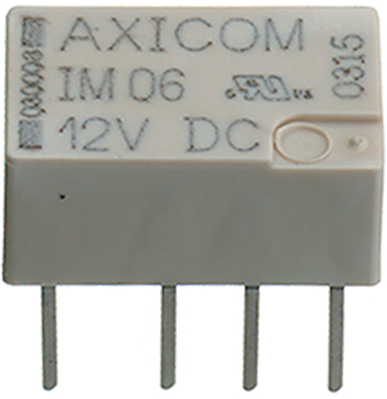

Signal relay, type TE Connectivity/AXICOM IM.
With 2 x CO contacts, for PCB mounting, polarized; Switching voltage: max. 220 VDC/250 VAC. Switching current: max. 2.0 A. Breaking capacity: max. 60 W/62.5 VA. Pickup time: typically 1.0 ms. Release time: typically 1.0 ms. Bounce: typically 1.0 ms. Switching rate: 50/s. Degree of protection: IP 67. Ambient temperatures: –40 to +85 °C. Contacts: NiPdAu.
Technical attributes (type, rated coil voltage, rated coil power, coil resistance (±10 % at +23 °C)): 3-1462037-0, 24 VDC, 200 mW, 2880 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Switching Voltage (DC) | 220 V | |
| Contact type | 2 Form C (NO/NC) | |
| Coil voltage (DC) | 24 V | |
| Contact material | PdRu + Au | |
| switching current | 2 A | |
| Coil resistance | 2.88 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
