2-1462037-7 | AXICOM
Relay, 2 Form C (NO/NC), 12 V (DC), 1.029 kΩ, 2 A, 220 V (DC), 250 V (AC), monostable, 2-1462037-7
Unit Price (€ / pc.)
3.0464 € *
Available: 395 pcs.
Available in 5 Days: 13,262 pcs. - if ordered today
Total Price:
3.05 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0464 €
10 pcs.
2.8322 €
25 pcs.
2.6418 €
50 pcs.
2.4038 €
*incl. VAT plus shipping costs
Subject to prior sale

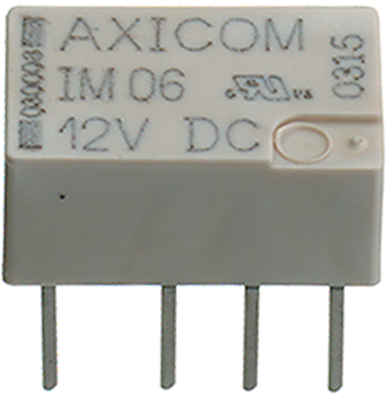

Signal relay, type TE Connectivity/AXICOM IM.
With 2 x CO contacts, for PCB mounting, polarized; Switching voltage: max. 220 VDC/250 VAC. Switching current: max. 2.0 A. Breaking capacity: max. 60 W/62.5 VA. Pickup time: typically 1.0 ms. Release time: typically 1.0 ms. Bounce: typically 1.0 ms. Switching rate: 50/s. Degree of protection: IP 67. Ambient temperatures: –40 to +85 °C. Contacts: NiPdAu.
Technical attributes (type, rated coil voltage, rated coil power, coil resistance (±10 % at +23 °C)): 2-1462037-7, 12 VDC, 140 mW, 1029 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Switching Voltage (DC) | 220 V | |
| Contact type | 2 Form C (NO/NC) | |
| Coil voltage (DC) | 12 V | |
| Contact material | PdRu + Au | |
| switching current | 2 A | |
| Coil resistance | 1.029 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
