2-1393816-2 | AXICOM
Relay, 4 Form C (NO/NC), 220 V (AC), 14 kΩ, 2 A, 125 V (AC), monostable, 2-1393816-2
Unit Price (€ / pc.)
265.1558 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,325.78 € *
Price list
Quantity
Price per unit*
5 pcs.
265.1558 €
10 pcs.
253.8270 €
*incl. VAT plus shipping costs
Subject to prior sale

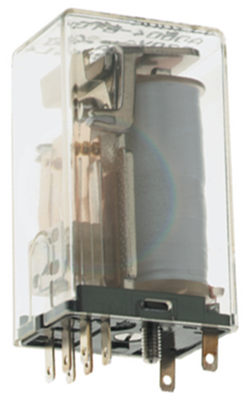

Cradle relay, type TE Connectivity/AXICOM W.
Size: 1 and 2. Style: For AC voltage, non-polarized, monostable, with single contacts, pluggable and fixed installation. Contact material: silver, gold-plated. Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 35 K/VA. Switching rate: max. 20 switching cycles/s. Socket descriptions below the Cradle relay.
With 4 x CO contacts.
Switching voltage: max. 150 VDC/125 VAC. Switching current: max. 2.0 A. Breaking capacity max.: 35 to 70 W (voltage-dependent), 50 VA. Design: size 2.
Technical attributes (type, rated voltage, coil resistance (±15 %)): 2-1393816-2, 220 VAC, 14000 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Contact material | silver | |
| switching current | 2 A | |
| Coil voltage (AC) | 220 V | |
| Coil resistance | 14 kΩ | |
| Switching Voltage (AC) | 125 V | |
| Coil type | monostable | |
| Contact type | 4 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
