2-1393793-1 | AXICOM
Relay, 2 Form C (NO/NC), 24 V (DC), 1.05 kΩ, 3 A, 220 V (DC), 250 V (AC), monostable, 2-1393793-1
Unit Price (€ / pc.)
4.4030 € *
Available: 4 pcs.
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4030 €
10 pcs.
4.0817 €
25 pcs.
3.7961 €
50 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

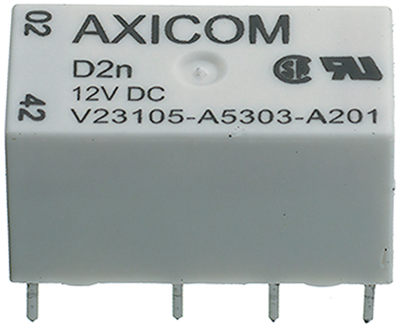

Signal relay, type TE Connectivity/AXICOM D2n.
With 2 x CO contacts, for PCB mounting; Non-polarized switching voltage: max. 220 VDC/250 VAC. Switching current: 3.0 A. Contact rating: 60 W/125 VA. Response time: 5.0 ms. Release time: 4.0 ms. Bounce time: 3.0 ms. Degree of protection: IP 67. Operating temperatures: –25 to +85 °C (150 and 200 mW), –25 to +60 °C (as of 515 mW). Contacts: AgNi gold-plated.
Technical attributes (type, rated voltage, rated coil power, coil resistance (±10 % at +23 °C)): 2-1393793-1, 24 VDC, 550 mW, 1050 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Switching Voltage (DC) | 220 V | |
| Contact type | 2 Form C (NO/NC) | |
| Coil voltage (DC) | 24 V | |
| switching current | 3 A | |
| Coil resistance | 1.05 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
