1-1393788-6 | AXICOM

Relay, 2 Form C (NO/NC), 24 V (DC), 4.114 kΩ, 2 A, 220 V (DC), 250 V (AC), monostable, 1-1393788-6

Order No.: 30G6705
EAN: 4099889395150
MPN:
1-1393788-6
V23079-A1005-B301
Series: P2

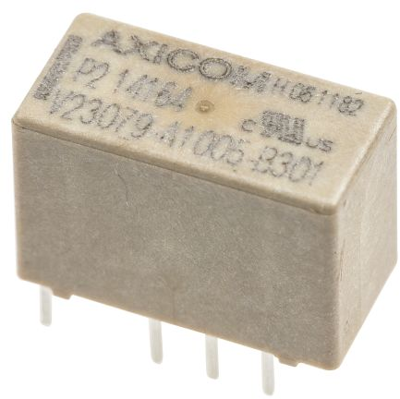

1-1393788-6 AXICOM Industrial Relays Image 1
1-1393788-6 AXICOM Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
2.1420 € *
Available: 777 pcs.
Available in 5 Days: 28,287 pcs. - if ordered today
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1420 €
10 pcs.
1.9873 €
25 pcs.
1.8445 €
50 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature relay, type TE Connectivity/AXICOM P2.

With double contacts and 2 x CO contacts, monostable. For PCB mounting with 2.54 mm grid. For DC voltage, polarized, wash-proof; Contact material: AgNi, gold-plated. Switching voltage: max. 220 VDC/250 VAC. Continuous current limit: 2.0 A. Switching current: max. 5.0 A. Contact rating: max. 60 W/62.5 VA. Coil power: 140 mW. Ambient temperatures: –40 to +85 °C. Response/release time: typical 3.0/3.0 ms. Test voltage coil/contact: 1500 VRMS.

Technical attributes (type, rated voltage, coil resistance at +23 °C (±10 %)): 1-1393788-6, 24 VDC, 4114 ohm

Technical specifications
Filter Property Value
switching current 2 A
Coil voltage (DC) 24 V
Contact type 2 Form C (NO/NC)
Contact material AgNi + Au
Switching Voltage (AC) 250 V
Switching Voltage (DC) 220 V
Coil type monostable
Coil resistance 4.114 kΩ
Connection PCB connection
Logistics
Property Value
Country of origin US
Customs tariff number 85364900
Original Packaging Bar with 50 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
