TAP686M006SRW | AVX

Talantum capacitor, radial, G, 68 µF, 6.3 V, ±20 %, TAP686M006SRW

Order No.: 25D718
EAN: 4099879880420
MPN:
TAP686M006SRW
Series: TAP

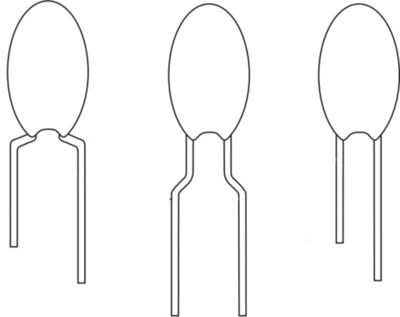

TAP686M006SRW AVX Tantalum Capacitors Image 1

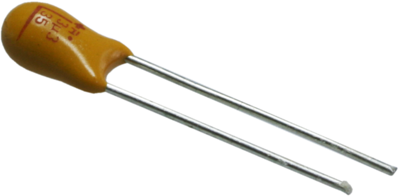

TAP686M006SRW AVX Tantalum Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
758.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
750 pcs.
1.0115 €

Radial, Tantalum capacitor, TAP686M006SRW, AVX

TAP is a professional grade device manufactured with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +125°C and is available loose or taped and reeled for auto insertion. The 15 case sizes with wide capacitance and working voltage ranges means the TAP can accommodate almost any application.

Technical Data

  • Capacity: 68 µF
  • Nominal voltage: 6.3 V
  • Size: G
  • Tolerance: ±20 %
Technical specifications
Filter Property Value
Grid 2.5 mm
ESR (Equivalent Series Resistance) 1.8 Ω
Design radial
max. operating temperature 125 °C
Capacity 68 µF
Size G
diameter 6.5 mm
min. operating temperature -55 °C
Tolerance ±20 %
Rated voltage (DC) 6.3 V
Length 10 mm
Logistics
Property Value
Country of origin GB
Original Packaging Reel with 750 pieces
Customs tariff number 85322100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
