TAP476K035CRW | AVX
Talantum capacitor, radial, N, 47 µF, 35 V, ±10 %, TAP476K035CRW
Unit Price (€ / pc.)
6.5926 € *
Available: 247 pcs.
Total Price:
6.59 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5926 €
10 pcs.
5.8072 €
100 pcs.
5.0932 €
500 pcs.
4.7005 €
1000 pcs.
4.4982 €
*incl. VAT plus shipping costs
Subject to prior sale

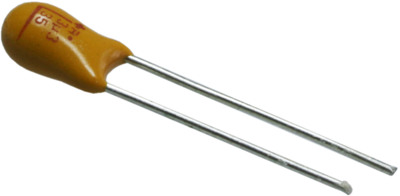

Radial, Tantalum capacitor, TAP476K035CRW, AVX
TAP is a professional grade device manufactured with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +125°C and is available loose or taped and reeled for auto insertion. The 15 case sizes with wide capacitance and working voltage ranges means the TAP can accommodate almost any application.
Technical Data
- Capacity: 47 µF
- Nominal voltage: 35 V
- Size: N
- Tolerance: ±10 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Size | N | |
| diameter | 9 mm | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±10 % | |
| Capacity | 47 µF | |
| ESR (Equivalent Series Resistance) | 800 mΩ | |
| Design | radial | |
| Length | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322100 |
| Country of origin | SV |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
