TAP226M035CRW | AVX

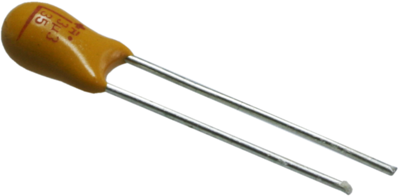

Talantum capacitor, radial, K, 22 µF, 35 V, ±20 %, TAP226M035CRW
Order No.: 25D788
EAN: 4099879880505
MPN:
TAP226M035CRW
This item is no longer available.
As an alternative, we recommend the following item:
Talantum capacitor, radial, K, 22 µF, 35 V, ±10 %, TAP226K035CRW
Order No.: 57D2227
Manufacturer: AVX
per pc. 2.4157 € *
Radial, Tantalum capacitor, TAP226M035CRW, AVX
TAP is a professional grade device manufactured with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +125°C and is available loose or taped and reeled for auto insertion. The 15 case sizes with wide capacitance and working voltage ranges means the TAP can accommodate almost any application.
Technical Data
- Capacity: 22 µF
- Nominal voltage: 35 V
- Size: K
- Tolerance: ±20 %
Technical specifications
| Rated voltage (DC) | 35 V | |
| Capacity | 22 µF | |
| diameter | 8.5 mm | |
| Grid | 5 mm | |
| Length | 12.5 mm | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 1.3 Ω | |
| min. operating temperature | -55 °C | |
| Size | K | |
| Tolerance | ±20 % | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85322100 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
