TAP106K016SRW | AVX

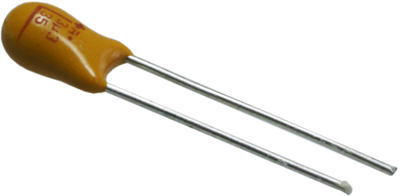

Talantum capacitor, radial, D, 10 µF, 16 V, ±10 %, TAP106K016SRW
Unit Price (€ / pc.)
1.2138 € *
Available: 1,010 pcs.
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
25 pcs.
0.9877 €
100 pcs.
0.8330 €
250 pcs.
0.7140 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Radial, Tantalum capacitor, TAP106K016SRW, AVX
TAP is a professional grade device manufactured with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +125°C and is available loose or taped and reeled for auto insertion. The 15 case sizes with wide capacitance and working voltage ranges means the TAP can accommodate almost any application.
Technical Data
- Capacity: 10 µF
- Nominal voltage: 16 V
- Size: D
- Tolerance: ±10 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Length | 9 mm | |
| Capacity | 10 µF | |
| Rated voltage (DC) | 16 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| ESR (Equivalent Series Resistance) | 3.2 Ω | |
| Design | radial | |
| Grid | 2.5 mm | |
| Tolerance | ±10 % | |
| Size | D |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SV |
| Original Packaging | Reel with 1,250 pieces |
| Customs tariff number | 85322100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
