TAJC475M025R | AVX
Talantum capacitor, SMD, C, 4.7 µF, 25 V, ±20 %, TAJC475M025R
Unit Price (€ / pc.)
0.2404 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, TAJC475M025R, AVX
Standard and Low Profile Tantalum Capacitors
FEATURES
- General purpose SMT chip tantalum series
- 17 case sizes available, standard and low profile
- J-lead construction
Technical Data
- Capacity: 4,7 µF
- Nominal voltage: 25 V

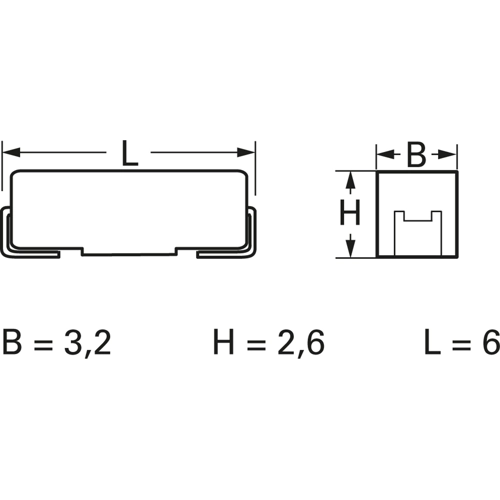

- Size: C
- Tolerance: ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Size | C | |
| ESR (Equivalent Series Resistance) | 2.2 Ω | |
| Rated voltage (DC) | 25 V | |
| max. operating temperature | 125 °C | |
| Tolerance | ±20 % | |
| Length | 6 mm | |
| Capacity | 4.7 µF | |
| min. operating temperature | -55 °C | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
