TAJC225M035R | AVX
Talantum capacitor, SMD, C, 2.2 µF, 35 V, ±20 %, TAJC225M035R
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, TAJC225M035R, AVX
Standard and Low Profile Tantalum Capacitors
FEATURES
- General purpose SMT chip tantalum series
- 17 case sizes available, standard and low profile
- J-lead construction
Technical Data
- Capacity: 2,2 µF
- Nominal voltage: 35 V

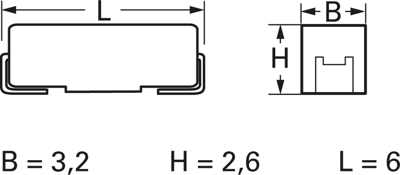

- Size: C
- Tolerance: ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Size | C | |
| ESR (Equivalent Series Resistance) | 3.5 Ω | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 125 °C | |
| Tolerance | ±20 % | |
| Length | 6 mm | |
| Capacity | 2.2 µF | |
| min. operating temperature | -55 °C | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
