CB187K0224JBC | AVX

Name: Film capacitor, 0.22 µF, ±5 %, 630 V (DC), PEN, CB187K0224JBC
Brand: AVX
SKU: 55D7757
Availability: OutOfStock

Film capacitor, 0.22 µF, ±5 %, 630 V (DC), PEN, CB187K0224JBC

Order No.: 55D7757

EAN: 4099879861474

MPN:

CB187K0224JBC

Series: CB

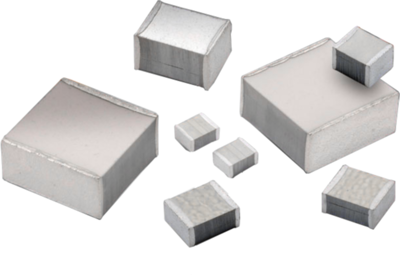

Image may differ

Key Specification:

Capacity 0.22 µF

Rated voltage (DC) 630 V

Rated voltage (AC) 250 V

Tolerance ±5 %

Dielectric material PEN

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.8084 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

1,123.36 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film chip capacitor, CB187K0224JBC, AVX

The CB187K0224JBC is a film chip capacitor using a naked and stacked construction with metallized PEN (polyethylene naphtalate). Use of high temperature dielectric films make these capacitors suitable for IR or vapor phase reflow processes. This chip is built without specific encapsulation.

Features

The self-healing property of film technology results to a safety open failure mode and better overall reliability
Low dissipation factor ESR & ESL
Non-polar construction
Excellent thermal shock resistance
No piezoelectric effect

Applications

Excellent thermal shock resistance
Low dissipation factor ESR & ESL
No piezoelectric effect
Non-polar construction

Technical specifications

Filter	Property	Value
	Rated voltage (DC)	630 V
	Dielectric material	PEN
	Capacity	0.22 µF
	Width	13.7 mm
	Height	6 mm
	Length	15.3 mm
	Rated voltage (AC)	250 V
	Design	SMD
	min. operating temperature	-55 °C
	Tolerance	±5 %
	max. operating temperature	125 °C
