EMZ504 | AUTH
Line filter, 70 kHz to 200 MHz, 4 A, 250 VAC, 1 kW, earthing contact (CEE 7/4), EMZ504
Unit Price (€ / pc.)
77.6713 € *
Available: 1 pcs.
Total Price:
77.67 € *
Price list
Quantity
Price per unit*
1 pcs.
77.6713 €
5 pcs.
75.1723 €
10 pcs.
70.1505 €
50 pcs.
65.1406 €
100 pcs.
60.1307 €
*incl. VAT plus shipping costs
Subject to prior sale

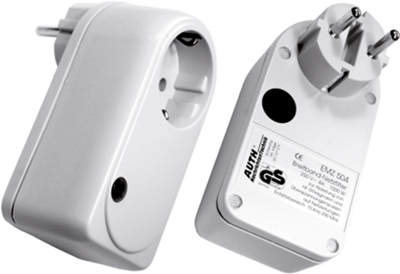

Universal EMC filter adapters, EMZ 504, AUTH
The EMZ 504 is a universal interference suppression filter for fast external retrofitting of electrical devices. This product is suitable for the reduction of broadband interference emissions both from as well as into the mains network. Also includes line network absorbs high-frequency voltages from motors, switches, switching power supplies or oscillators, which can negatively influence devices in their function.
Features
- Protective contact
- Overvoltage protection optional
- Quick to plug in
- Ground wire choking
- Compact and stable housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | earthing contact (CEE 7/4) | |
| max. frequency | 200 MHz | |
| Power | 1 kW | |
| min. frequency | 70 kHz | |
| max. operating temperature | 40 °C | |
| min. operating temperature | -25 °C | |
| Rated Voltage | 250 VAC | |
| Version | line filter | |
| Rated current | 4 A | |
| With fuse | Yes | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
