EM516 | AUTH
Line filter, 200 kHz to 200 MHz, 16 A, 250 VAC, 4 kW, earthing contact (CEE 7/4), EM516
Unit Price (€ / pc.)
74.8629 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
74.86 € *
Price list
Quantity
Price per unit*
1 pcs.
74.8629 €
5 pcs.
72.4591 €
10 pcs.
67.6277 €
50 pcs.
62.7963 €
100 pcs.
57.9649 €
*incl. VAT plus shipping costs
Subject to prior sale

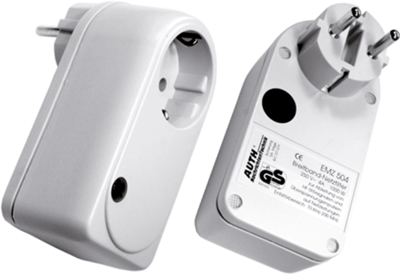

Universal EMC filter adapters, Auth EM5../EMZ5.
Adapter with ground contact, grounding choke, and surge voltage protection
Rated voltage: 250 VAC
Dimensions: 43 x 55 x 105 mm
Blocking attenuation: 10 to 40 dB. Selection of maximum filter bandwidth in relation to the max. current rating.
Without overvoltage protection, EM5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | line filter | |
| min. frequency | 200 kHz | |
| max. frequency | 200 MHz | |
| Rated current | 16 A | |
| Rated Voltage | 250 VAC | |
| Power | 4 kW | |
| Connection | earthing contact (CEE 7/4) | |
| With fuse | Yes | |
| integrated switch | No | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
