Q- 50,000000M-HC3225/4-F-30-50-E-12-TR | Auris

Crystal, 50 MHz, 12 pF, ±30 ppm, 60 Ω, SMD, Q- 50,000000M-HC3225/4-F-30-50-E-12-TR

Order No.: 77D9774
EAN: 4099879148759
MPN:
Q- 50,000000M-HC3225/4-F-30-50-E-12-TR
Series: HC3225

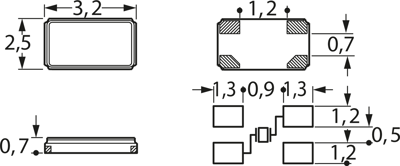

Q- 50,000000M-HC3225/4-F-30-50-E-12-TR Auris Quartze Image 1

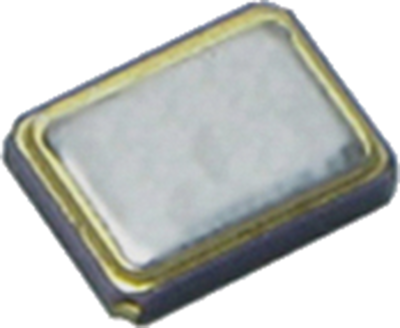

Q- 50,000000M-HC3225/4-F-30-50-E-12-TR Auris Quartze Image 2
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
452.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.4522 €

SMD resonators, seam-welded ceramic package, type Auris HC3225/4.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 12 pF. Operating temperatures: –40 to +85 °C. Parallel. capacitance: 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±3.0 ppm/year.


Type: 50.000000 MHz

Technical specifications
Frequency 50 MHz
Frequency stability +/-50
Tolerance ±30 ppm
Load Capacity 12 pF
ESR (Equivalent Series Resistance) 60 Ω
Assembly SMD
Length 3.2 mm
Width 2.5 mm
Height 0.8 mm
min. operating temperature -40 °C
max. operating temperature 85 °C
Number of connection pads 4
Logistics
Country of origin CN
Customs tariff number 85416000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
