Q- 32,768000K-TC26-20-B-12,5 | Auris

Crystal, 32.768 kHz, 12.5 pF, ±30 ppm, 40 kΩ, THT, Q- 32,768000K-TC26-20-B-12,5

Order No.: 78D200
EAN: 4099879149459
MPN:
Q- 32,768000K-TC26-20-B-12,5
Series: TC26
Q- 32,768000K-TC26-20-B-12,5 Auris Quartze
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 420 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
50 pcs.
0.2451 €
250 pcs.
0.2047 €
1000 pcs.
0.1749 €
2500 pcs.
0.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

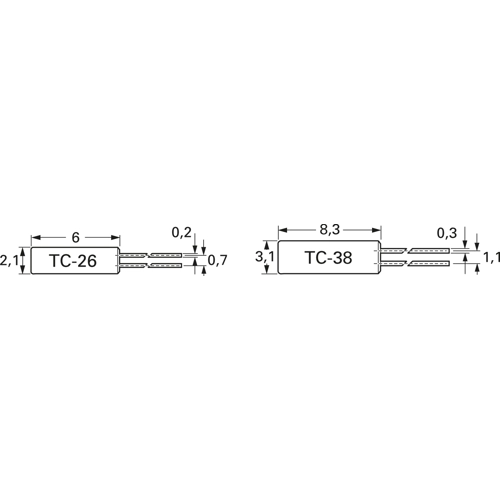

Miniature quartz crystals, type Auris TC26/TC38.

With wire connections, for high package density; frequency tolerance: ±20 ppm at +25 °C. Load capacitance: 12.5 pF. Operating temperatures: –10 to +60 °C. Series resistance: TC-26 max. 50 kohm, TC-38 max. 35 kohm. Insulation resistance: 500 Mohm. Aging: 5.0 ppm/year.


Type: TC26, 32.768 kHz

Technical specifications
Load Capacity 12.5 pF
Assembly THT
Width 2.1 mm
Height 0.7 mm
Length 6 mm
ESR (Equivalent Series Resistance) 40 kΩ
min. operating temperature -10 °C
Tolerance ±30 ppm
max. operating temperature 60 °C
Frequency 32.768 kHz
Logistics
Country of origin TW
Customs tariff number 71041000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
