Q- 32,768000K-MP03-20-E-12,5-TR | Auris
Clock quartz, 32.768 kHz, 12.5 pF, ±30 ppm, 50 kΩ, SMD, Q- 32,768000K-MP03-20-E-12,5-TR
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
2 pcs.
0.8211 €
10 pcs.
0.7616 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
High-performance SMD clock quartz modules, type Auris MP03-20.
Frequency tolerance: ±20 ppm at +25 °C. Load capacitance: 12.5 pF. Operating temperatures: –40 to +85 °C. Parallel. capacitance: 1.3 to 2.0 pF. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.
Type: 32.768 kHz, SMD clock quartz module

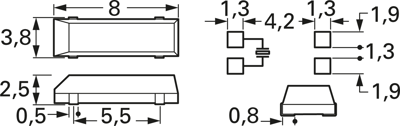

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Height | 2.5 mm | |
| ESR (Equivalent Series Resistance) | 50 kΩ | |
| max. operating temperature | 85 °C | |
| Width | 3.8 mm | |
| Frequency | 32.768 kHz | |
| min. operating temperature | -40 °C | |
| Number of connection pads | 4 | |
| Load Capacity | 12.5 pF | |
| Tolerance | ±30 ppm | |
| Length | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85416000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
