Q- 30,000000M-HC5032/4-F-30-50-E-16-TR | Auris

Crystal, 30 MHz, 16 pF, ±30 ppm, 35 Ω, SMD, Q- 30,000000M-HC5032/4-F-30-50-E-16-TR

Order No.: 77D9633
EAN: 4099879148445
MPN:
Q- 30,000000M-HC5032/4-F-30-50-E-16-TR
D12502
Series: HC5032
Auris
Q- 30,000000M-HC5032/4-F-30-50-E-16-TR Auris Quartze
Image may differ
Print
Key Specification:
Frequency 30 MHz
Frequency stability +/-50
Tolerance ±30 ppm
Load Capacity 16 pF
ESR (Equivalent Series Resistance) 35 Ω
Show variants: 10
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
511.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.5117 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD resonators with high reliability, type Auris HC5032/4.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 16 pF. Parallel capacitance: 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±3.0 ppm/year. Operating temperatures: –40 to +85 °C.


Type: 30.000000 MHz
Technical specifications
Frequency 30 MHz
Frequency stability +/-50
Tolerance ±30 ppm
Load Capacity 16 pF
ESR (Equivalent Series Resistance) 35 Ω
Assembly SMD

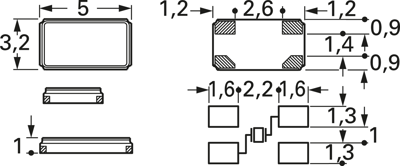

Length 5 mm
Width 3.2 mm
Height 1 mm
min. operating temperature -40 °C
max. operating temperature 85 °C
Number of connection pads 4
Articles of same specification 0
Logistics
Customs tariff number 85416000
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
