Q- 3,932160M-HC49U-F-30-30-D-32 | Auris

Crystal, 3.93216 MHz, 32 pF, ±30 ppm, 90 Ω, THT, Q- 3,932160M-HC49U-F-30-30-D-32

Order No.: 78D252
EAN: 4099879149596
MPN:
Q- 3,932160M-HC49U-F-30-30-D-32
Series: HC49U
Auris

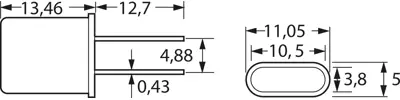

Q- 3,932160M-HC49U-F-30-30-D-32 Auris Quartze Image 1

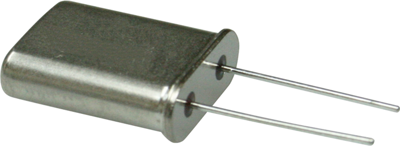

Q- 3,932160M-HC49U-F-30-30-D-32 Auris Quartze Image 2
Image may differ
Print
Key Specification:
Frequency 3.93216 MHz
Frequency stability +/-30
Tolerance ±30 ppm
Load Capacity 32 pF
ESR (Equivalent Series Resistance) 90 Ω
Show variants: 26
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
547.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.5474 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Standard quartz crystals, type Auris HC49U.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 32 pF. Operating temperatures: –20 to +70 °C. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.


Temperature tolerance ±30 ppm.


Type: 3.932160 MHz
Technical specifications
max. operating temperature 70 °C
Load Capacity 32 pF
Length 11.05 mm
min. operating temperature -20 °C
Height 13.46 mm
Assembly THT
Width 5 mm
Frequency stability +/-30
Frequency 3.93216 MHz
ESR (Equivalent Series Resistance) 90 Ω
Tolerance ±30 ppm
Articles of same specification 0
Logistics
Customs tariff number 85416000
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
